Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-LED-01
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Stand Alone Marine Led Lantern |
Operating Temperature: |
-35°C To +°65C |
IP Rating: |
IP67 |
Size (mm ): |
240*185*341mm |
Light Source: |
LED |
Light Color: |
Red/Green/Yellow/Blue/White/Yellow And Blue |
Vertical Divergence: |
≥8° |
Light Value: |
256 Adjustable |
Product Name: |
Stand Alone Marine Led Lantern |
Operating Temperature: |
-35°C To +°65C |
IP Rating: |
IP67 |
Size (mm ): |
240*185*341mm |
Light Source: |
LED |
Light Color: |
Red/Green/Yellow/Blue/White/Yellow And Blue |
Vertical Divergence: |
≥8° |
Light Value: |
256 Adjustable |

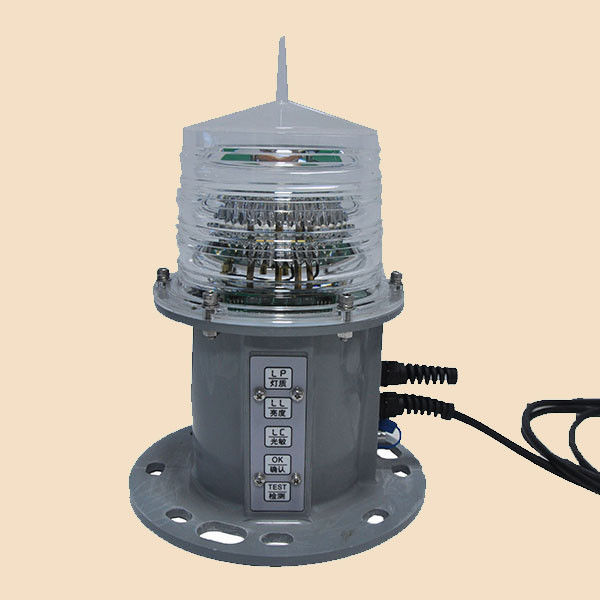

7NM IP68 Floating Marine Lantern LED Navigation Light for Buoy Marker
Product Overviews:
Ideal for use on buoys, this marine LED lantern delivers a powerful light range of up to 7NM.
The robust fiberglass housing is engineered for UV resistance, shock resistance,
and corrosion protection, making it perfect for demanding maritime conditions.
Equipped with a high-intensity, energy-saving fan beam LED array,
it offers six color options: white, yellow, red, blue, green, and blue & yellow
that comply with IALA chromaticity requirements, ensuring visibility and safety.
Features and benefits:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP67 | |
| Operating Voltage | 8-32V | |
| Size (mm ) | 240*185*341mm | |
| Life time | 10 years(excluding battery) | |
| Weight | ≤2.6KGS | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Flash syncronization | GPS synchronized flash | |
| Visible Range | up to 7NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥8° | |
| Light value | 256 adjustable | |
| Brightness | Adjustable | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
