Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-AISNL-02
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
AIS Solar Powered Marine LED Lantern |
Solar Output: |
4X7W |
Battery Autonomy: |
25 Days |
Message Format: |
No. 21 And 6 |
Battery Type: |
Lithium Iron Phosphate |
Battery Life: |
5 Years |
Product Name: |
AIS Solar Powered Marine LED Lantern |
Solar Output: |
4X7W |
Battery Autonomy: |
25 Days |
Message Format: |
No. 21 And 6 |
Battery Type: |
Lithium Iron Phosphate |
Battery Life: |
5 Years |

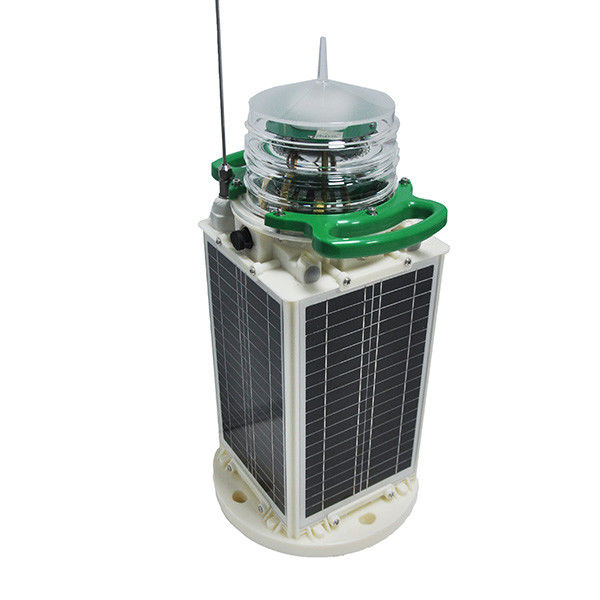

Floating Solar Powered Aids To Navagation Marine LED Lantern With AIS Integrated
Product Overviews:
This Floating Self-Contained Solar Marine Lantern with AIS is ideal for buoys,
providing up to 5 NM of optical range. Equipped with a Type 3 AIS transponder, it ensures effective vessel communication.
The lantern boasts a weather-protected design with a self-contained LED light, AIS, and GPS modules.
Four solar panels and a substantial battery capacity contribute to its high energy efficiency,
making it a dependable choice for maritime navigation.
Features and benefits:
Durable Housing: Fiberglass construction with UV resistance, shockproof, corrosion-proof, and IP68 rating.
Ensures long-lasting performance in harsh marine environments.
Effective Range: Provides visibility up to 5 NM.
Delivers clear signaling over long distances.
All-in-One Unit: Includes AIS module, LED light, battery, and solar power.
Simplifies installation with a compact design.
Type 3 AIS Transponder: Supports both transmission and reception.
Improves vessel communication and safety.
Energy-Efficient LEDs: High-intensity LED array.
Offers bright illumination with low energy consumption.
Advanced Solar Panels: Equipped with four 4x7W panels.
Optimizes solar energy capture for consistent operation.
Flexible Battery Options: High capacity with multiple pack choices.
Adapts to different power storage needs.
Automatic Light Control: Digital sensor for on/off functionality.
Enhances energy efficiency and ease of use.
Customizable Colors: Six IALA-compliant colors available.
Provides versatile signaling options.
Adjustable Flashing: More than 256 flash patterns.
Allows detailed customization of visual signals.
Standard GPS Module: Included for synchronization.
Provides precise timing and coordination.
Remote Configuration: Managed via PC or 433 remote control.
Enables convenient setup and monitoring.
Extended Operational Time: Up to 25 days without solar charge.
Ensures functionality during extended low-light periods.
IALA Recommendations: Complies with international standards.
Assures reliability in maritime navigation.
Adjustable Performance: Customizable intensity and range.
Provides flexibility for various environmental conditions.
Bird Deterrent System: Integrated feature to deter nesting.
Prevents bird interference and reduces maintenance.
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature range | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X489mm | |
| Life time | 10 years(excluding battery) | |
| Weight | 7.5-9.5KgKGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-5NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥8° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H | |
| AIS Spec | Operation frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK | |
| Frequency error | ±0.5kHz | |
| Transmission power | ≤12.5W | |
| Average power consumption | ≤0.05W | |
| Message format Messages | No. 21 and NO.6,message periods are adjustable | |
| Operating type | Type three (SOTDMA, autonomous working mode) | |
| AIS antenna | Included, high gain omnidirectional antenna |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
