AIS Solar Power Navigation Light

Name: AIS Solar Power Navigation Light
Brand: Chengdu Dixin Technology Co. , Ltd.
SKU: DX-LED-02-G
Availability: InStock

Product Details

Place of Origin: China Chengdu

Brand Name: DIXIN

Certification: ROHS,CE

Model Number: DX-LED-02-G

Payment & Shipping Terms

Minimum Order Quantity: 1 PC

Price: Contact Us

Packaging Details: Carton

Delivery Time: Contact Us

Payment Terms: T/T

Supply Ability: 5000pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      10NM Solar Power Navigation Light, AIS Solar Power Navigation Light, Self Contained Solar Powered Nav Lights


Product Name:	Fixed Solar Powered LED Marine Lantern	Light Source:	LED
Flash Syncronization:	GPS Synchronized Flash	Solar Module Type:	Mono Crystalline Silicon
Solar Output:	4X7W	Warranty:	3 Years

Product Name:	Fixed Solar Powered LED Marine Lantern
Light Source:	LED
Flash Syncronization:	GPS Synchronized Flash
Solar Module Type:	Mono Crystalline Silicon
Solar Output:	4X7W
Warranty:	3 Years

Description

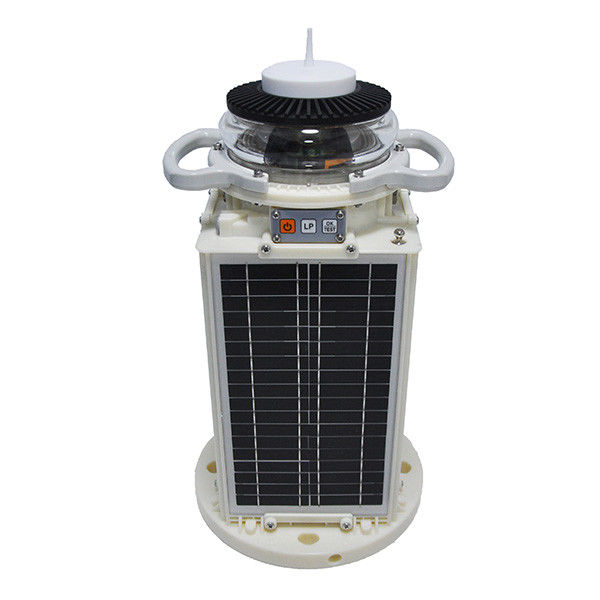

AIS Solar Power Navigation Light

7NM Solar Powered Self Contained Marine LED Lantern For Navigation Buoy Marker Fixed Structures

Product Overviews:

Experience reliable navigation with our Fixed Self-Contained Solar Marine Lantern,

designed for fixed structures with a range of up to 7 NM.

This weather-protected lantern features a robust LED light source,

an integrated GPS module, and four solar panels, ensuring optimal energy efficiency and extended battery life.

Features and benefits:

Durable Construction: Features a fiberglass housing with UV resistance, ensuring the lantern is shockproof and corrosion-proof.
Reliable Performance: Rated IP68 with an optical range of up to 7 NM, providing long-lasting protection against the elements.
Self-Contained Efficiency: Integrated design includes an LED light, battery, and four 4X7W solar panels for powerful, energy-efficient performance.
High Intensity & Energy Efficient: Utilizes a high-intensity LED array that is both bright and energy-efficient.
Extended Autonomy: High-capacity battery options offer autonomy of up to 25 days without solar charging.
Smart Operation: Built-in digital sensor for automatic light operation, with GPS synchronization included as standard.
Versatile Flash Options: More than 256 adjustable flash characters and six IALA-compliant colors available.
User-Friendly Control: Program, configure, and monitor operating status via PC or 433 remote control.
Integrated Bird Deterrent: Prevents bird interference with a built-in deterrent system.
Compliant Design: Developed in line with IALA recommendations for marine navigation aids.

Specifications:

Phisical Spec	Lens material	Acrylic
	Body material	Fiberglass
	Operating temperature range	-35°C to +°65C
	Humidity	0~100%
	IP Rating	IP68
	Size (mm )	240X240X455mm
	Life time	10 years(excluding battery)
	Weight	≤11KGS
Battery Spec	Battery type	Lithium iron phosphate
	Battery nominal voltage	12.8V
	Battery autonomy	25 days
	Battery capacity	384Wh/512Wh/665Wh
	Recharging power	Typical 400 mA
	Standby power	3mA current
	Operating Voltage	DC 10V—14.6V
	Battery life	5 years
Solar Spec	Solar module type	Mono crystalline Silicon
Solar Spec	Solar output	4X7W
Optical Spec	Light Source	LEDs
	Light color	Red/Green/Yellow/Blue/White/Yellow and blue
	Visible Range	3-7NM available
	Horizontal Output(degrees)	360°
	Vertical Divergence(degrees)	≥2.5°
	Light value	256 adjustable
	Brightness	adjustable in units of 1%
	Operation Mode	Built-in sensor, dark and day adjust automatically
	LED Life Experience(hours)	>100,000H

Dimension Drawing:

AIS Solar Power Navigation Light 0

Applications:

Quality Control:

ISO9001, 14001, 45001

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
