Self Contained Marine LED Lantern Fixed With Solar Powered And GPS Synchronization

Name: Self Contained Marine LED Lantern Fixed With Solar Powered And GPS Synchronization
Brand: Chengdu Dixin Technology Co. , Ltd.
SKU: DX-LED-02-G
Availability: InStock

Product Details

Place of Origin: China Chengdu

Brand Name: DIXIN

Certification: ROHS,CE

Model Number: DX-LED-02-G

Payment & Shipping Terms

Minimum Order Quantity: 1 PC

Price: Contact Us

Packaging Details: Carton

Delivery Time: Contact Us

Payment Terms: T/T

Supply Ability: 5000pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Self Contained Marine LED Lantern, Solar Powered Marine LED Lantern, Solar Powered IALA Navigation Lights


Product Name:	Fixed Solar Powered LED Marine Lantern	Solar Output:	4X7W
Battery Capacity:	384Wh/512Wh/665Wh	Light Color:	Red/Green/Yellow/Blue/White/Yellow And Blue
Vertical Divergence:	≥2.5°	LED Life Experience:	>100,000H

Product Name:	Fixed Solar Powered LED Marine Lantern
Solar Output:	4X7W
Battery Capacity:	384Wh/512Wh/665Wh
Light Color:	Red/Green/Yellow/Blue/White/Yellow And Blue
Vertical Divergence:	≥2.5°
LED Life Experience:	>100,000H

Description

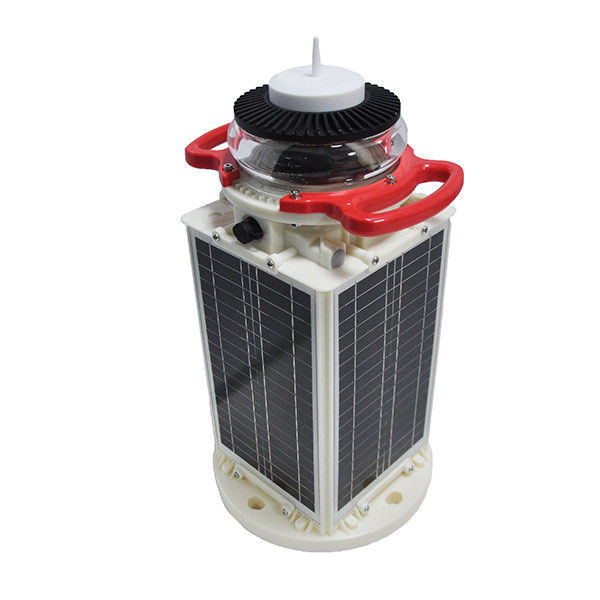

Self Contained Marine LED Lantern Fixed With Solar Powered And GPS Synchronization

Self Contained Marine LED Lantern Fixed With Solar Powered And GPS Synchronization

Product Overviews:

Designed for fixed structure with up to 7 NM range,

our Fixed Self-Contained Solar Marine Lantern delivers exceptional performance.

It features a self-contained LED light source, GPS integration, and four solar panels,

all within a weather-protected unit that ensures the highest energy efficiency and extended battery life

Features and benefits:

Robust Housing: Constructed with UV-resistant, shockproof, and corrosion-proof fiberglass for durability in marine environments.
IP68 Protection: Waterproof and rated for an optical range up to 7 NM, ensuring reliable performance in all weather conditions.
Self-Contained Design: Combines LED lighting, battery, and four 4X7W solar panels for a powerful, energy-efficient system.
Intense & Efficient Lighting: High-intensity LED array delivers bright, energy-efficient light for maximum visibility.
Extended Battery Options: High-capacity battery packs offer up to 25 days of autonomy without solar power.
Automatic & Synchronized: Features a built-in digital sensor for automatic operation and GPS synchronization as standard.
Customizable Light Settings: Choose from over 256 flash characters and six IALA-compliant colors to suit your needs.
User-Friendly Control: Easily programmable via PC or 433 remote control, with real-time status monitoring.
Integrated Bird Deterrent: Prevents bird interference with a built-in deterrent.
IALA Standards Compliance: Designed in accordance with IALA recommendations for top-tier marine navigation.

Specifications:

Phisical Spec	Lens material	Acrylic
	Body material	Fiberglass
	Operating temperature range	-35°C to +°65C
	Humidity	0~100%
	IP Rating	IP68
	Size (mm )	240X240X455mm
	Life time	10 years(excluding battery)
	Weight	≤11KGS
Battery Spec	Battery type	Lithium iron phosphate
	Battery nominal voltage	12.8V
	Battery autonomy	25 days
	Battery capacity	384Wh/512Wh/665Wh
	Recharging power	Typical 400 mA
	Standby power	3mA current
	Operating Voltage	DC 10V—14.6V
	Battery life	5 years
Solar Spec	Solar module type	Mono crystalline Silicon
Solar Spec	Solar output	4X7W
Optical Spec	Light Source	LEDs
	Light color	Red/Green/Yellow/Blue/White/Yellow and blue
	Visible Range	3-7NM available
	Horizontal Output(degrees)	360°
	Vertical Divergence(degrees)	≥2.5°
	Light value	256 adjustable
	Brightness	adjustable in units of 1%
	Operation Mode	Built-in sensor, dark and day adjust automatically
	LED Life Experience(hours)	>100,000H

Dimension Drawing:

Self Contained Marine LED Lantern Fixed With Solar Powered And GPS Synchronization 0

Applications:

Quality Control:

ISO9001, 14001, 45001

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
