GPRS Self Contained Marine Lanterns

Name: GPRS Self Contained Marine Lanterns
Brand: Chengdu Dixin Technology Co. , Ltd.
SKU: DX-GRPSNL-02-G
Availability: InStock

Product Details

Place of Origin: China Chengdu

Brand Name: DIXIN

Certification: ROHS,CE

Model Number: DX-GRPSNL-02-G

Payment & Shipping Terms

Minimum Order Quantity: 1 PC

Price: Contact Us

Packaging Details: Carton

Delivery Time: Contact Us

Payment Terms: T/T

Supply Ability: 5000pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      GPRS Self Contained Marine Lanterns, Fixed Self Contained Marine Lanterns, GPRS Solar Navigation Light


Product Name:	Fixed Self Contained GPRS Marine Lantern	Communication Module:	GPRS 4G Or 5G
Visible Range:	3-7NM	Vertical Divergence:	≥2.5°
Solar Module Type:	Mono Crystalline Silicon	Battery Type:	Lithium Iron Phosphate

Product Name:	Fixed Self Contained GPRS Marine Lantern
Communication Module:	GPRS 4G Or 5G
Visible Range:	3-7NM
Vertical Divergence:	≥2.5°
Solar Module Type:	Mono Crystalline Silicon
Battery Type:	Lithium Iron Phosphate

Description

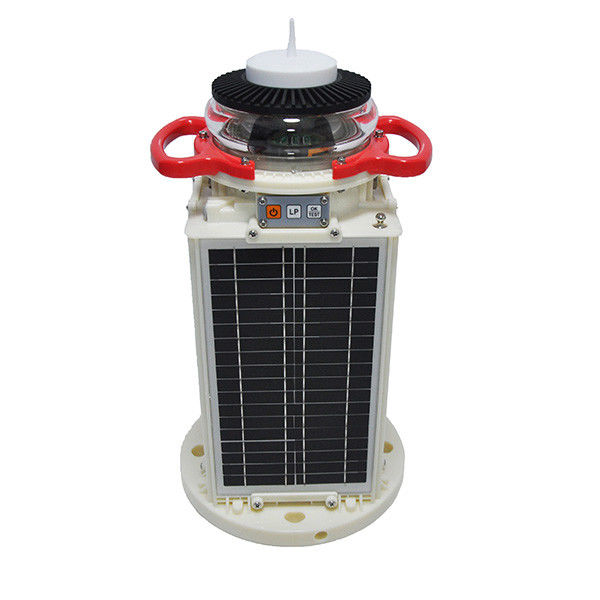

GPRS Self Contained Marine Lanterns

Marine Navigation LED Lantern witth GPRS Communicated Solar Powered 7NM IP68 Fixed

Product Overviews:

Our Fixed Self-Contained Marine Lantern with GPRS is ideal for fixed structures,

offering a reach of up to 7 NM. Built to withstand the elements,

this weather-protected lantern includes an LED light source, GPRS communication, and a GPS module.

Its self-contained design, combined with four solar panels and a large battery capacity,

guarantees superior energy efficiency and reliable performance.

Features and benefits:

Sturdy Housing: UV-resistant, shockproof, and corrosion-proof fiberglass housing for enhanced durability in marine settings.
IP68 Certified: Provides waterproof protection with an optical range extending up to 7 NM.
Comprehensive Design: Self-contained with a built-in 4G/5G GPRS module for efficient data communication, along with LED lighting, battery, and solar power.
High-Intensity LED: Energy-efficient LED array for powerful and reliable illumination.
Solar Efficiency: Four 4X7W solar panels ensure powerful and consistent solar energy supply.
Extended Autonomy: Offers high-capacity battery options with up to 25 days of autonomy without solar input.
Smart Lighting: Automatic on/off control with a built-in digital sensor.
Color Versatility: Available in six colors, all meeting IALA chromaticity standards.
Accurate Synchronization: GPS module for precise timing and over 256 adjustable flash characters.
Integrated Bird Deterrent: Protects against bird interference.
Remote Configuration: Easily manage settings via PC or 433 remote control.
.

Specifications:

Phisical Spec	Lens material	Acrylic
	Body material	Fiberglass
	Operating temperature range	-35°C to +°65C
	Humidity	0~100%
	IP Rating	IP68
	Size (mm )	240X240X455mm
	Life time	10 years(excluding battery)
	Weight	≤11KGS
Battery Spec	Battery type	Lithium iron phosphate
	Battery nominal voltage	12.8V
	Battery autonomy	25 days
	Battery capacity	384Wh/512Wh/665Wh
	Recharging power	Typical 400 mA
	Standby power	3mA current
	Operating Voltage	DC 10V—14.6V
	Battery life	5 years
Solar Spec	Solar module type	Mono crystalline Silicon
Solar Spec	Solar output	4X7W
Optical Spec	Light Source	LEDs
	Light color	Red/Green/Yellow/Blue/White/Yellow and blue
	Visible Range	3-7NM available
	Horizontal Output(degrees)	360°
	Vertical Divergence(degrees)	≥2.5°
	Light value	256 adjustable
	Brightness	adjustable in units of 1%
	Operation Mode	Built-in sensor, dark and day adjust automatically
	LED Life Experience(hours)	>100,000H
GPRS Spec	Communication Networks	4G or 5G
GPRS Spec	Transmition Consumption	≤2W

Dimension Drawing:

GPRS Self Contained Marine Lanterns 0

Applications:

Quality Control:

ISO9001, 14001, 45001

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
