Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-WDS2
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Ultrasonic Wind Speed & Direction Anemometer |
Wind Speed: |
0 - 60m/s |
Wind Direction: |
0~360° |
Analogue Output: |
Two Ways 4-20mA Max.load 500Ω |
Digital Output: |
RS232/RS485/SDI-12 |
Power Supply: |
DC 5－30V |
Product Name: |
Ultrasonic Wind Speed & Direction Anemometer |
Wind Speed: |
0 - 60m/s |
Wind Direction: |
0~360° |
Analogue Output: |
Two Ways 4-20mA Max.load 500Ω |
Digital Output: |
RS232/RS485/SDI-12 |
Power Supply: |
DC 5－30V |

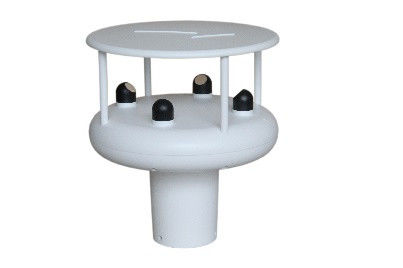

Ultrasonic Wind Speed And Direction Sensor For Weather Station light robust Easy Use
Product Overviews:
The DX-WDS2 ultrasonic anemometer boasts a lightweight and robust design, free from moving parts,
which means it requires no maintenance or calibration on site.
It can simultaneously output both wind speed and direction data.
The device is highly versatile and can be used in conjunction with PCs, data loggers,
or other devices that have compatible communication protocols.
Furthermore, it can be customized with optional modules like a barometric pressure sensor for monitoring
air pressure or a 3D module to measure vibration amplitudes, all without changing its external appearance.
As an advanced wind speed detection device,
the ultrasonic anemometer outperforms traditional mechanical models by addressing their inherent limitations.
Its ability to function reliably for extended periods makes it an increasingly popular choice,
effectively replacing mechanical anemometers in many applications.
Key Features:
Specifications:
|
Wind speed |
Range | 0 - 60m/s |
| Accuracy | ±2% | |
| Resolution | 0.01m/s | |
| Unit | m/s,km/h,knots,mph,ft/min (selectable) | |
|
Wing direction |
Measure Range | 0-359° |
| intersection angle with geographic north | 0-359° | |
| Accuracy | ±3° | |
| Resolution | 1° | |
| Digital output | Interface | RS232/RS485/SDI-12 |
| Baud rate |
9600(default) 1200-19200(configurable) |
|
| Frequency |
Standard: 1Hz (1 output per second) Customized:4Hz(4 outputs per second) |
|
| protocol | ModBus-RTU/NMEA 0183/SDI-12 | |
|
Analogue output (current output is optional) |
Two ways 4-20mA Max.load 500Ω | |
| Protection grade | IP65 | |
| Operating Temperature | -40℃ - +70℃ | |
| Operating Humidity | 0 - 100% | |
| Power supply | DC 5－30V | |
| Power Consumption |
5mA@12V(Heater off) 125mA@12V(Heater on) |
|
| Size/Weight | Φ144×165mm / 0.68kg | |
| Body material | ASA | |
Dimension Drawing:
Applications:
Normally,DX-WDS2 is installed on a vertical pole horizontally
For indoor use, sensor can be installed anywhere to measure wind speed and direction of corresponding plane.
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
