25kHz Bandwidth Outdoor Base Station DC 32V With Built In 4G Module

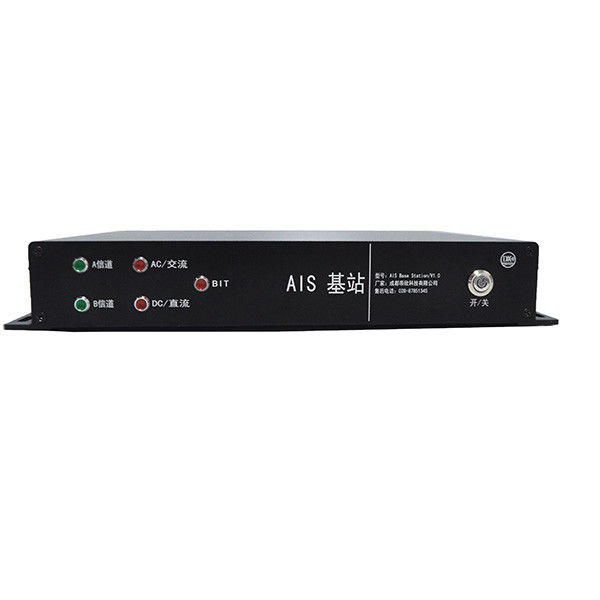

25kHz Bandwidth Indoor AIS Base Station With Built-in 4G module

Product Overviews:


This indoor AIS base station, developed by our company, leverages wireless 4G technology to ensure robust network transmission.

With integrated AIS receiving and network transmission units, along with a power management system,

the station can efficiently relay AIS data to a central server using network connections, RS485, or RS232 interfaces.

Tailored for coastal regions, inland waterways, ports, and offshore platforms,

it receives and communicates data from all AIS sources within its operational range.

The product's compact design allows for straightforward installation, supporting both network and local output.

Installed on coastal or riverbank locations,

it gathers AIS information from vessels and equipment within its coverage and uploads this data in real time to a base station network management system. This solution is perfect for managing AIS systems, navigation aids, port traffic, and fishery vessels.


Key Features:


• AIS base station optimized for indoor applications
• Supports AIS transceivers operating on 161.975MHz and 162.025MHz channels
• 25kHz bandwidth ensures stable and accurate communication
• Built-in 4G module for reliable network communication
• High-efficiency AIS module included for robust data handling
• Uses NMEA 0183 protocol with VDM format for message transmission
• Integrated Ethernet network controller for connecting AIS data to online services
• Simple configuration through an easy-to-use, free setup software
• Universal mains power adapter included for flexible installation
• External VHF antenna required for enhanced communication capabilities
• Compatible with RS232, RS485, and RJ45 interfaces for diverse system integration


Specifications:





Dimension Drawing:




Applications and Installations:


 AIS system, AIS AtoN management system, port traffic management system, fishery vessel management system, etc.


Quality Control:

ISO9001, 14001, 45001



About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
