Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-A-435-04
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Marine UHF Antenna |
Frequency Range (MHz): |
435±11MHz |
Gain (dBi): |
12-13 |
Input Impedance (Ω): |
50 |
V.S.W.R: |
≤1.5 |
Size(mm): |
φ50*4000 |
Product Name: |
Marine UHF Antenna |
Frequency Range (MHz): |
435±11MHz |
Gain (dBi): |
12-13 |
Input Impedance (Ω): |
50 |
V.S.W.R: |
≤1.5 |
Size(mm): |
φ50*4000 |

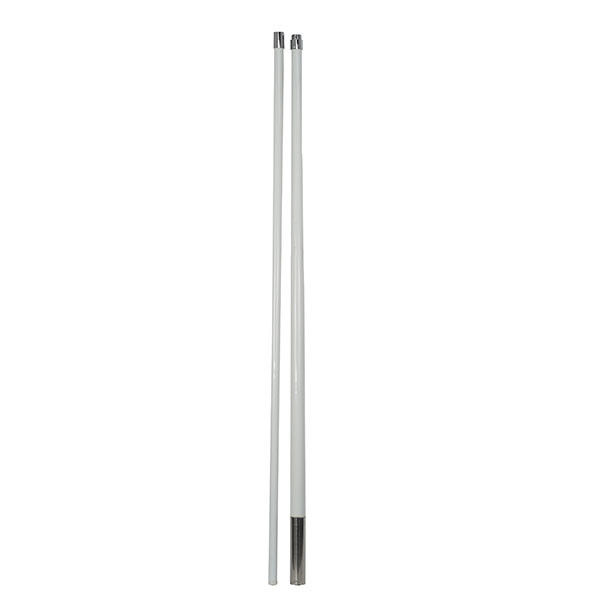

Rust Proof 4m 435±11MHz Marine UHF Antenna 13dB With 100W Power Capacity
Product Overviews:
Offering robust performance in maritime communications, our UHF antennas come in lengths of 4 meters.
These antennas support a UHF frequency range between 435±11MHz,
with a gain of 12-13dB and 50Ω impedance. The V.S.W.R is maintained at or below 1.5,
and they are fitted with S16 connectors for optimal signal transmission.
Key Features:
Marine UHF Antenna: Engineered specifically for maritime applications.
Gain and Power Capacity: Offers a strong signal with 12-13dBi gain and a 100W power capacity for effective transmission.
Operating Frequency: Functions within the UHF range of 435±11MHz.
Available Lengths: Comes in 4-meter options.
Durable Fiberglass Radome: Provides robust protection against harsh weather conditions.
S16 Connector with Low-Loss Cable: Facilitates straightforward and efficient installation.
Superior Signal Performance: Built with thick brass and copper for enhanced reliability.
UV-Resistant Coating: Features a white finish with a polyurethane coating to guard against sun exposure.
Weather-Resistant Design: Crafted to endure challenging marine environments for long-term performance.
Specifications:
| Electrical Spec | Frequency Range (MHz) |
| |
| Gain (dBi) | 12-13 | ||
| Input Impedance (Ω) | 50 | ||
| V.S.W.R | ≤1.5 | ||
| Polarization | Vertical | ||
| Maxlmum input power (W) | 100 | ||
| Mechanical Spec | Connector | SL16 | |
| Size(mm) | φ50*4000 | ||
| Radiating Element Material | Copper Cu | ||
| Radome material | Fiberglass | ||
| Installation | Pole and support pipe |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
