IP65 Robust Design Portable Personal Positioning Terminal With Lithium Battery

Product Details

Place of Origin: China Chengdu

Brand Name: DIXIN

Certification: ROHS,CE

Model Number: DX-ZD-01

Payment & Shipping Terms

Minimum Order Quantity: 1 PC

Price: Contact Us

Packaging Details: Carton

Delivery Time: Contact Us

Payment Terms: T/T

Supply Ability: 5000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

Robust Design Portable Positioning Terminal

,

Lithium Battery Portable Positioning Terminal

,

IP65 Portable Positioning Terminal

Product Name:
Portable Positioning Terminal
Operating Temperature:
-20℃—+55℃
Operating Voltage:
DC 5.6-8.2V
Battery Autonomy:
≥5days
Positioning Module:
Beidou
Waranty:
3 Years
Product Name:
Portable Positioning Terminal
Operating Temperature:
-20℃—+55℃
Operating Voltage:
DC 5.6-8.2V
Battery Autonomy:
≥5days
Positioning Module:
Beidou
Waranty:
3 Years
Description
IP65 Robust Design Portable Personal Positioning Terminal With Lithium Battery

IP65 Robust Design Portable Personal Positioning Terminal With Lithium Battery



Product Overviews:




This terminal features BeiDou satellite positioning and GPRS for real-time location tracking and data transmission to the data center.

It is powered by a high-capacity lithium battery, providing up to 48 hours of continuous use on a full charge.



The small and portable design makes it easy to carry on the waist, in a backpack, or in a case,

making it ideal for field personnel and patrol management.



The terminal includes a manual alarm mode that accelerates message transmission and changes messages to an alert format.

Sent messages are stored in 128MB memory, which can be exported to files or retransmitted via GPRS,

and the memory can be manually cleared.




Features:


  • Dual-Positioning: Combines BeiDou satellite with GPRS for reliable location tracking and parameter transmission.
  • Extended Battery: The large-capacity lithium battery allows for 48 hours of continuous use.
  • Portable Design: Compact and portable, it can be easily carried on a belt, backpack, or in a case.
  • Alarm Function: The manual alarm mode, activated with a 3-second press, boosts transmission frequency and alerts recipients.
  • Storage & Export: Stores messages in 128MB memory and supports export via software or retransmission via GPRS.
  • Precision Tracking: Achieves location accuracy within 10 meters using Beidou satellite communication.
  • Robust & Waterproof: Built with water-resistant materials and features intelligent battery management for enhanced performance.


Specifications:


Operating voltage DC 5.6V-8.2V
Charging voltage DC 12.6V
Positioning method Beidou positioning
Communication Beidou&GPRS
Battery autonomy ≥5 days
Emission cycle BD/GPRS can be set separately; the minimum is 2 minutes
Operating temperature -20℃—+55℃
Storage temperature -30~+60
IP Rate IP65
Size 195X175X103mm

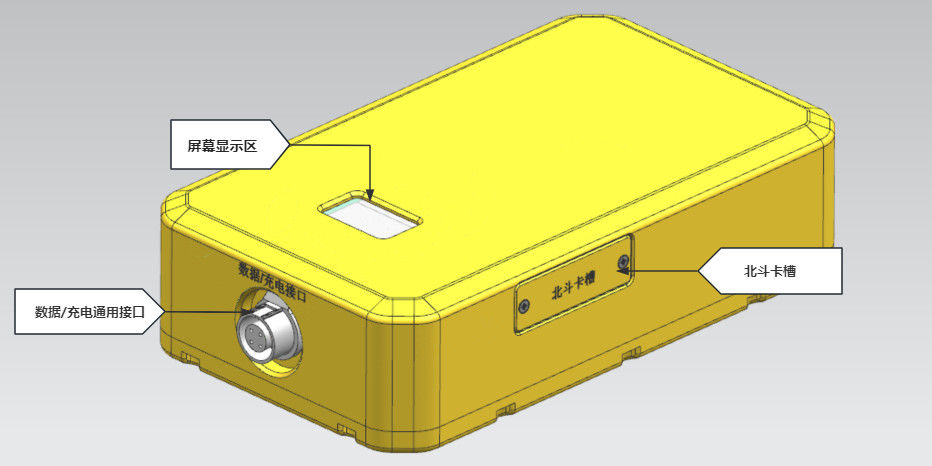

Dimension Drawing:

IP65 Robust Design Portable Personal Positioning Terminal With Lithium Battery 0

Applications:

Buoy,beacon,bridge,light tower and other fixed structures

IP65 Robust Design Portable Personal Positioning Terminal With Lithium Battery 1
IP65 Robust Design Portable Personal Positioning Terminal With Lithium Battery 2

Quality Control:

ISO9001, 14001, 45001
IP65 Robust Design Portable Personal Positioning Terminal With Lithium Battery 3
