500mm AIS Aids To Navigation
, Compact Structure AIS Aids To Navigation
, Compact Structure Aids Navigation

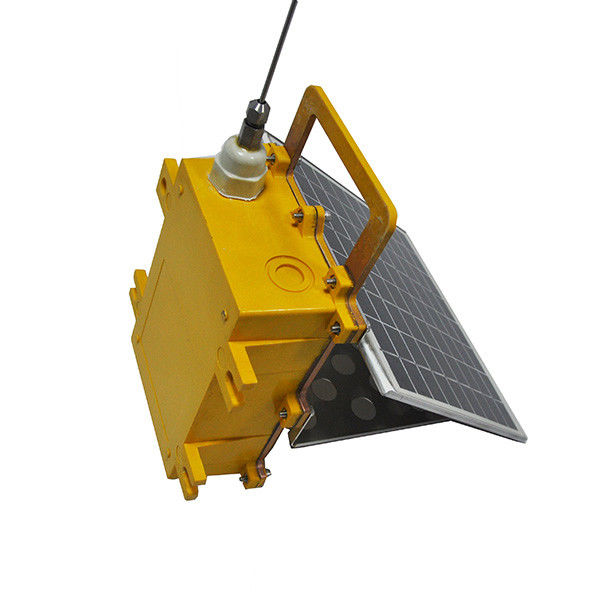

Compact Structure 500mm AIS Aids To Navigation With High Battery Capacity
AIS Marine AtoN for Buoys and Fixed Structures with Solar Panel powered and Lithium battery
Product Overviews:
This advanced marine Aid to Navigation (AtoN) is designed specifically for buoys and fixed structures.
A fully compliant AIS transponder
Housed in a rugged protected housing,
integrated solar panel and GPS module ,
large battery capacity, highest energy efficiency.
Key Features:
Self solar panel powered, easy installation and maintainence
Rugged enclosure with IP68 degree of protection
Integrated GPS antenna in enclosure
Intelligent management of battery charging and discharging process, High Battery Capacity, multiple battery pack options
Support connection with external lantern
Support messages #6, #21
Battery autonomy 40 Days
Specifications:
| Genaral Spec |
Body material |
Fiberglass |
| Bracket Material |
S316 tainless steel aluminum |
| Operating temperature range |
-35°C to +°60C |
| IP Rating |
IP68 |
| Size (mm ) |
500×175×245mm |
| Life time |
10 years |
| Weight |
2.5KGS |
| AIS Spec |
Operation frequency |
161.975MHz, 162.025MHz |
| Modulation |
GMSK/FSK |
| Frequency error |
±0.5kHz |
| Transmission power |
≤12.5W |
| Average power consumption |
≤0.05W |
| Message format Messages |
No. 21 and NO.6,message periods are adjustable |
| Operating type |
Type three (SOTDMA, autonomous working mode) |
| AIS antenna |
Included, high gain omnidirectional antenna |
| Battery Spec |
Battery type |
Lithium |
| Battery nominal voltage |
7.4V |
| Battery autonomy |
40 Days |
| Battery capacity: |
7.4V/10.4AH |
| Operating Voltage |
DC 5.5-8.1V |
| Recharging Voltage |
8.4V |
| Solar Spec |
Solar module type |
Mono crystalline Silicon |
| Solar output |
1X7W |
Dimension Drawing:
Applications:
Buoy,beacon,bridge,light tower and other fixed structures
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
