Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-AIS-01-2
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Solar Powered AIS AtoN |
IP Level: |
IP68 |
Solar Output: |
4X1.8W |
Battery Capacity: |
7.4V/10.4AH |
Battery Type: |
Lithium |
Battery Autonomy: |
30 Days |
Product Name: |
Solar Powered AIS AtoN |
IP Level: |
IP68 |
Solar Output: |
4X1.8W |
Battery Capacity: |
7.4V/10.4AH |
Battery Type: |
Lithium |
Battery Autonomy: |
30 Days |
IP68 Integrated Aids to navigation with Solar panel and rechargeable Lithium Battery
Product Overviews:

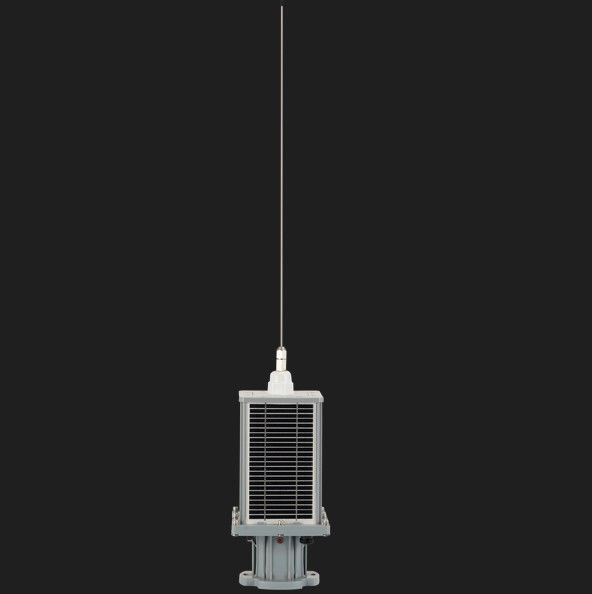

This self-contained AIS AtoN is tailored for use on buoys and fixed structures, offering a fully compliant AIS transponder.
The unit is protected by a rugged housing and incorporates four solar panels alongside a GPS module.
Its large battery capacity and superior energy efficiency guarantee long-lasting, autonomous operation,
making it ideal for remote or harsh locations.
Features and benefits:
Specifications:
| Genaral Spec | Body material | Fiberglass |
| Bracket Material | S316 tainless steel aluminum | |
| Operating temperature range | -35°C to +°60C | |
| IP Rating | IP68 | |
| Life time | 10 years | |
| Weight | 2.5KGS | |
| AIS Spec | Operation frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK | |
| Frequency error | ±0.5kHz | |
| Transmission power | ≤12.5W | |
| Average power consumption | ≤0.05W | |
| Message format Messages | No. 21 and NO.6,message periods are adjustable | |
| Operating type | Type three (SOTDMA, autonomous working mode) | |
| AIS antenna | Included, high gain omnidirectional antenna | |
| Battery Spec | Battery type | Lithium |
| Battery nominal voltage | 7.4V | |
| Battery autonomy | 30 Days | |
| Battery capacity: | 7.4V/10.4AH | |
| Operating Voltage | DC 5.5-8.1V | |
| Recharging Voltage | 8.4V | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X1.8W |
Dimension Drawing:
Applications:
Buoy,beacon,bridge,light tower and other fixed structures
Quality Control:
ISO9001, 14001, 45001
