Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-AIS-01-2
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Solar Powered AIS AtoN |
IP Level: |
IP68 |
Solar Output: |
4X1.8W |
Battery Type: |
Lithium |
Battery Autonomy: |
30 Days |
Warranty: |
3 Years |
Product Name: |
Solar Powered AIS AtoN |
IP Level: |
IP68 |
Solar Output: |
4X1.8W |
Battery Type: |
Lithium |
Battery Autonomy: |
30 Days |
Warranty: |
3 Years |

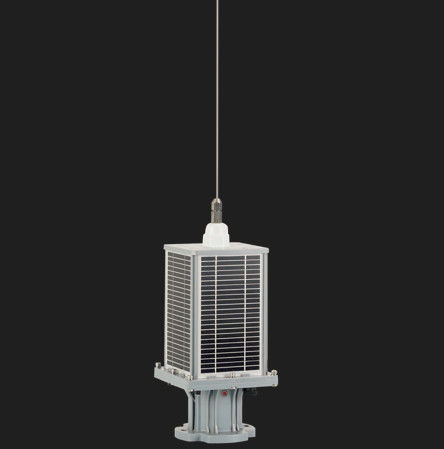

Remote monitoring Self Contained Marine Aids to navigation with AIS transponder and Solar Panel
Product Overviews:
Engineered for buoys and fixed structures,
this self-contained AIS AtoN includes a fully compliant AIS transponder housed in a sturdy enclosure.
It integrates four solar panels and a GPS module, providing ample battery capacity and maximizing energy efficiency.
These features ensure consistent, reliable performance, even in the most challenging marine environments.
Features and benefits:
Specifications:
| Genaral Spec | Body material | Fiberglass |
| Bracket Material | S316 tainless steel aluminum | |
| Operating temperature range | -35°C to +°60C | |
| IP Rating | IP68 | |
| Life time | 10 years | |
| Weight | 2.5KGS | |
| AIS Spec | Operation frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK | |
| Frequency error | ±0.5kHz | |
| Transmission power | ≤12.5W | |
| Average power consumption | ≤0.05W | |
| Message format Messages | No. 21 and NO.6,message periods are adjustable | |
| Operating type | Type three (SOTDMA, autonomous working mode) | |
| AIS antenna | Included, high gain omnidirectional antenna | |
| Battery Spec | Battery type | Lithium |
| Battery nominal voltage | 7.4V | |
| Battery autonomy | 30 Days | |
| Battery capacity: | 7.4V/10.4AH | |
| Operating Voltage | DC 5.5-8.1V | |
| Recharging Voltage | 8.4V | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X1.8W |
Dimension Drawing:
Applications:
Buoy,beacon,bridge,light tower and other fixed structures
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
