IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures

Name: IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures
Brand: Chengdu Dixin Technology Co. , Ltd.
SKU: DX-AIS-01
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China Chengdu

Brand Name: DIXIN

Certification: ROHS,CE

Model Number: DX-AIS-01

Payment & Shipping Terms

Minimum Order Quantity: 1 PC

Price: Contact Us

Packaging Details: Carton

Delivery Time: Contact Us

Payment Terms: T/T

Supply Ability: 5000pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Fixed AIS Marine Navigation, IP68 AIS Marine Navigation, High Efficiency Aids Navigation


Product Name:	AIS AtoN	IP Level:	IP68
Operating Temperature:	-35°C To +°60C	Warranty:	3 Years
Size (mm ):	281X180X69mm	Weight:	2KGS
Life Time:	10 Years	Message Format:	Messages No. 21 And 6
Operating Type:	Type Three	AIS Antenna:	Included, High Gain Omnidirectional Antenna

Product Name:	AIS AtoN
IP Level:	IP68
Operating Temperature:	-35°C To +°60C
Warranty:	3 Years
Size (mm ):	281X180X69mm
Weight:	2KGS
Life Time:	10 Years
Message Format:	Messages No. 21 And 6
Operating Type:	Type Three
AIS Antenna:	Included, High Gain Omnidirectional Antenna

Description

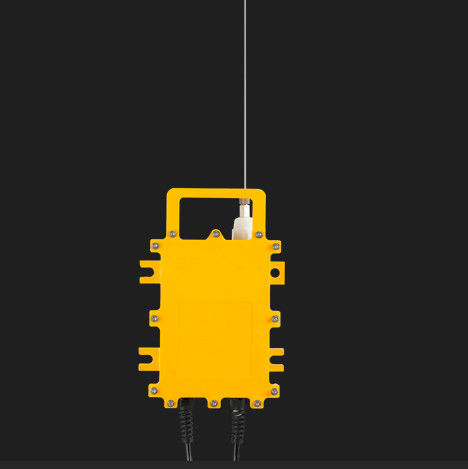

IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures

IP68 AIS Marine Aids to navigation for buoys and fixed structures

Product Overviews:

This advanced marine Aid to Navigation (AtoN) is designed specifically for buoys and fixed structures.

A fully compliant AIS transponder,

Housed in a rugged protected housing, integrated GPS module,

support external conenction of power supply, solar panel and lantern.

This robust system is built to withstand harsh marine environments, providing reliable navigation and safety solutions.

Features:

Rugged Enclosure: Designed with an IP68-rated housing,ensuring maximum protection against dust and water ingress, making it suitable for harsh environments.
Integrated GPS Module: Built-in GPS module for accurate positioning and tracking, seamlessly housed within the unit.
External Power Input: Equipped with an external DC power supply input for reliable power connectivity.
Smart Battery Management: Advanced battery management system supporting both lead-acid and lithium batteries, optimizing charging and discharging processes for extended battery life.
Solar Panel Compatibility: Supports connection to solar panels, enabling sustainable and independent power generation.
External Lantern Support: Compatible with external lanterns for enhanced visibility and signaling.
Message Support: Fully supports AIS messages No. 6 and No. 21 for efficient communication and data transmission.

Specifications:

Genaral Spec	Body material	Fiberglass
	Bracket Material	S316 tainless steel aluminum
	Operating temperature range	-35°C to +°60C
	IP Rating	IP68
	Operating Voltage	8 to 32 V DC
	Solar recharge current	≤10A
	Lantern discharge current	≤10A
	Size (mm )	281X180X69mm
	Life time	10 years
	Weight	2KGS
AIS Spec	Operation frequency	161.975MHz, 162.025MHz
	Modulation	GMSK/FSK
	Frequency error	±0.5kHz
	Transmission power	≤12.5W
	Average power consumption	≤0.05W
	Message format Messages	No. 21 and NO.6,message periods are adjustable
	Operating type	Type three (SOTDMA, autonomous working mode)
	AIS antenna	Included, high gain omnidirectional antenna

Dimension Drawing:

IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures 0

Applications:

Buoy,beacon,bridge,light tower and other fixed structures

IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures 2

Quality Control:

ISO9001, 14001, 45001

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.

IP68 AIS Marine Navigation High Efficiency For Buoys And Fixed Structures 4
