Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-WL/AIS-02-G
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Self Contained AIS And GPRS Marine Lantern |
AIS Message Format: |
No. 21 And NO.6,message Periods Are Adjustable |
Communication Networks: |
4G Or 5G |
Battery Autonomy: |
25 Days |
Visible Range: |
3-7NM |
Warranty: |
3 Years |
Product Name: |
Self Contained AIS And GPRS Marine Lantern |
AIS Message Format: |
No. 21 And NO.6,message Periods Are Adjustable |
Communication Networks: |
4G Or 5G |
Battery Autonomy: |
25 Days |
Visible Range: |
3-7NM |
Warranty: |
3 Years |

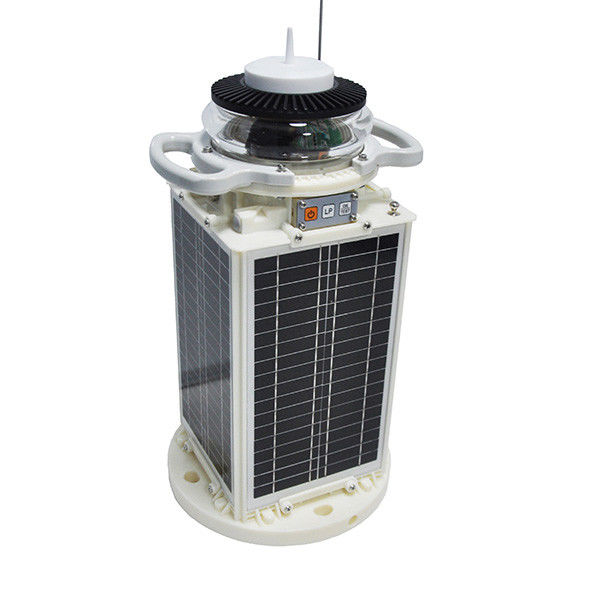

7NM Self Contained AIS And GPRS Communicated LED Marine Lantern Solar Powered
Product Overviews:
Enhance your maritime safety with our Fixed Self-Contained Solar Marine Lantern.
Engineered for fixed structures and offering a powerful range of up to 7NM,
this weather-protected lantern includes an AIS Type 3 transponder and a GPRS module, ensuring constant communication and monitoring.
The LED light source, coupled with four solar panels and a GPS module, delivers the highest energy efficiency,
while the large battery capacity supports prolonged use, making it a dependable choice for harsh marine environments.
Features and benefits:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature range | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X455mm | |
| Life time | 10 years(excluding battery) | |
| Weight | ≤11KGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-7NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥2.5° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H | |
| AIS Spec | Operation frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK | |
| Frequency error | ±0.5kHz | |
| Transmission power | ≤12.5W | |
| Average power consumption | ≤0.05W | |
| Message format | No. 21 and NO.6,message periods are adjustable | |
| Operating type | Type three (SOTDMA, autonomous working mode) | |
| AIS antenna | Included, high gain omnidirectional antenna | |
| GPRS Spec | Communication Networks | 4G or 5G |
| Transmition Consumption | ≤2W |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
