Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-LED-02-G
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Solar Powered LED Marine Lantern |
Visible Range: |
3-7NM Available |
Horizontal Output(degrees): |
360° |
Vertical Divergence(degrees): |
≥2.5° |
Solar Module Type: |
Mono Crystalline Silicon |
Solar Output: |
4X7W |
Product Name: |
Solar Powered LED Marine Lantern |
Visible Range: |
3-7NM Available |
Horizontal Output(degrees): |
360° |
Vertical Divergence(degrees): |
≥2.5° |
Solar Module Type: |
Mono Crystalline Silicon |
Solar Output: |
4X7W |

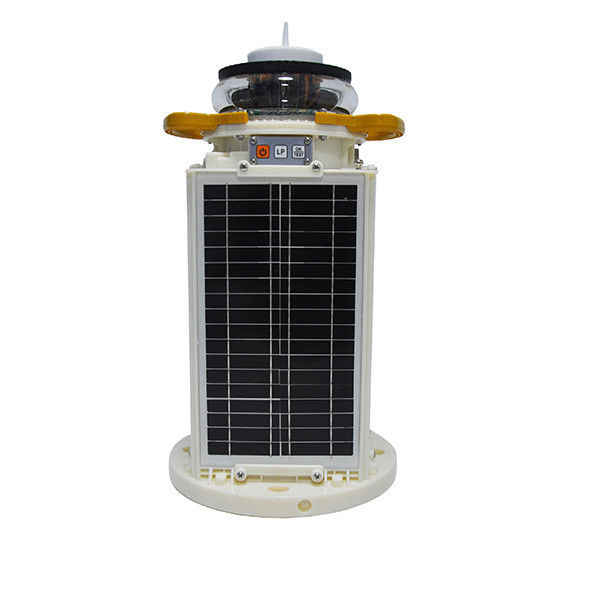

10NM LED Marine Lantern Solar Powered For Beacon Bridge Light Tower Fixed Structure
Product Overviews:
Engineered for fixed marine structures such as navigation aids and offshore markers,
the Fixed Self-Contained Solar Marine Lantern delivers superior visibility with a range of up to 7 nautical miles.
This lantern's weatherproof design protects it from the elements,
while its self-contained setup includes an LED light source, GPS module,
and a solar-powered system with four solar panels and a high-capacity battery.
Its high energy efficiency reduces the need for frequent servicing,
making it an ideal choice for long-term deployment in challenging environments.
The integrated GPS module ensures precise positioning, enhancing navigation safety for vessels operating in remote waters.
Features and benefits:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature range | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X455mm | |
| Life time | 10 years(excluding battery) | |
| Weight | ≤11KGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-7NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥2.5° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
