Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-GRPSNL-02-G
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Self Contained GPRS Marine Lantern |
Communication Module: |
GPRS 4G Or 5G |
Body Material: |
Fiberglass |
Operating Temperature: |
-35°C To +°65C |
IP Rating: |
IP68 |
Size (mm ): |
240X240X455mm |
Product Name: |
Self Contained GPRS Marine Lantern |
Communication Module: |
GPRS 4G Or 5G |
Body Material: |
Fiberglass |
Operating Temperature: |
-35°C To +°65C |
IP Rating: |
IP68 |
Size (mm ): |
240X240X455mm |

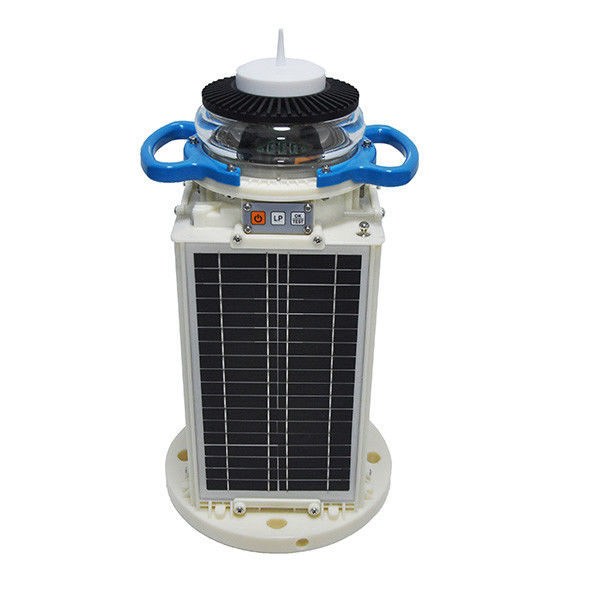

Self Contained 4G 5G GPRS IALA Aids To Navigation Marine Lantern Solar Powered
Product Overviews:
The Fixed Self-Contained Marine Lantern with GPRS is ideal for use on fixed marine structures like
lighthouses and navigation buoys, offering reliable visibility up to 7 nautical miles.
Engineered for harsh marine environments, this lantern features weather-resistant construction and advanced technology,
including an LED light source, GPRS communication, and GPS modules.
Equipped with four solar panels and a large battery capacity, it operates independently,
ensuring high energy efficiency and minimal maintenance.
Its robust design provides consistent performance and real-time data transmission,
enhancing maritime safety and operational efficiency.
Features and benefits:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature range | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X455mm | |
| Life time | 10 years(excluding battery) | |
| Weight | ≤11KGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-7NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥2.5° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H | |
| GPRS Spec | Communication Networks | 4G or 5G |
| Transmition Consumption | ≤2W |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
