4X7W Solar Powered Navigation Lights Weather Resistant With Energy Efficiency

Name: 4X7W Solar Powered Navigation Lights Weather Resistant With Energy Efficiency
Brand: Chengdu Dixin Technology Co. , Ltd.
SKU: DX-WL/AIS-02-G
Availability: InStock

Product Details

Place of Origin: China Chengdu

Brand Name: DIXIN

Certification: ROHS,CE

Model Number: DX-WL/AIS-02-G

Payment & Shipping Terms

Minimum Order Quantity: 1 PC

Price: Contact Us

Packaging Details: Carton

Delivery Time: Contact Us

Payment Terms: T/T

Supply Ability: 5000pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      4X7W Solar Powered Navigation Lights, Weather Resistant Navigation Lights, Energy Efficiency Solar Powered Nav Lights


Product Name:	Self Contained AIS And GPRS Marine Lantern	AIS Message Format:	No. 21 And NO.6
Battery Autonomy:	25 Days	Solar Output:	4X7W
Life Time:	10 Years	IP Rate:	IP68

Product Name:	Self Contained AIS And GPRS Marine Lantern
AIS Message Format:	No. 21 And NO.6
Battery Autonomy:	25 Days
Solar Output:	4X7W
Life Time:	10 Years
IP Rate:	IP68

Description

4X7W Solar Powered Navigation Lights Weather Resistant With Energy Efficiency

25 Days Autonomy Self Contained LED Marine Lantern With AIS And GPRS Communicated

Product Overviews:

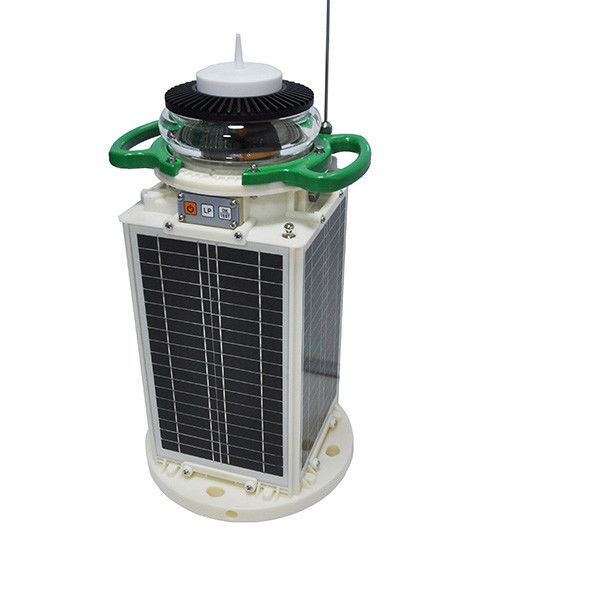

Our Fixed Self-Contained Solar Marine Lantern is perfect for fixed structures,

providing visibility up to 7 NM.

This weather-resistant lantern is equipped with an AIS Type 3 transponder and a GPRS module,

offering advanced communication capabilities. With an LED light source, four solar panels,

and a GPS module, it achieves superior energy efficiency.

The large battery capacity ensures extended operation,

making it an excellent solution for uninterrupted marine navigation and enhanced safety.

Features and benefits:

Tough and Reliable: Fiberglass housing with excellent UV resistance, shockproof, corrosion-proof, and IP68 rated for harsh marine environments.
Integrated Data Communication: Features AIS transponder Type 3 and a 4G/5G GPRS module for efficient message transmission and reception.
Powerful Solar Solution: Includes four 4x7W solar panels and a high-capacity battery, ensuring up to 25 days of autonomy without solar charging.
Versatile Lighting Options: Energy-efficient LED array with six IALA-compliant colors, GPS synchronization, and more than 256 adjustable flash characters.
Advanced Control Features: Automatic light operation with a built-in digital sensor, integrated bird deterrent, and programming via PC or 433 remote control.

Specifications:

Phisical Spec	Lens material	Acrylic
	Body material	Fiberglass
	Operating temperature range	-35°C to +°65C
	Humidity	0~100%
	IP Rating	IP68
	Size (mm )	240X240X455mm
	Life time	10 years(excluding battery)
	Weight	≤11KGS
Battery Spec	Battery type	Lithium iron phosphate
	Battery nominal voltage	12.8V
	Battery autonomy	25 days
	Battery capacity	384Wh/512Wh/665Wh
	Recharging power	Typical 400 mA
	Standby power	3mA current
	Operating Voltage	DC 10V—14.6V
	Battery life	5 years
Solar Spec	Solar module type	Mono crystalline Silicon
Solar Spec	Solar output	4X7W
Optical Spec	Light Source	LEDs
	Light color	Red/Green/Yellow/Blue/White/Yellow and blue
	Visible Range	3-7NM available
	Horizontal Output(degrees)	360°
	Vertical Divergence(degrees)	≥2.5°
	Light value	256 adjustable
	Brightness	adjustable in units of 1%
	Operation Mode	Built-in sensor, dark and day adjust automatically
	LED Life Experience(hours)	>100,000H
AIS Spec	Operation frequency	161.975MHz, 162.025MHz
	Modulation	GMSK/FSK
	Frequency error	±0.5kHz
	Transmission power	≤12.5W
	Average power consumption	≤0.05W
	Message format	No. 21 and NO.6,message periods are adjustable
	Operating type	Type three (SOTDMA, autonomous working mode)
	AIS antenna	Included, high gain omnidirectional antenna
GPRS Spec	Communication Networks	4G or 5G
GPRS Spec	Transmition Consumption	≤2W

Dimension Drawing:

4X7W Solar Powered Navigation Lights Weather Resistant With Energy Efficiency 0

Applications:

Quality Control:

ISO9001, 14001, 45001

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
