Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-AISNL-02-G
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Self Contained AIS Marine Light |
Light Source: |
LED |
Light Color: |
Red/Green/Yellow/Blue/White/Yellow And Blue |
Light Value: |
256 Adjustable |
Brightness: |
Adjustable In Units Of 1% |
Size (mm ): |
240X240X455mm |
Product Name: |
Self Contained AIS Marine Light |
Light Source: |
LED |
Light Color: |
Red/Green/Yellow/Blue/White/Yellow And Blue |
Light Value: |
256 Adjustable |
Brightness: |
Adjustable In Units Of 1% |
Size (mm ): |
240X240X455mm |

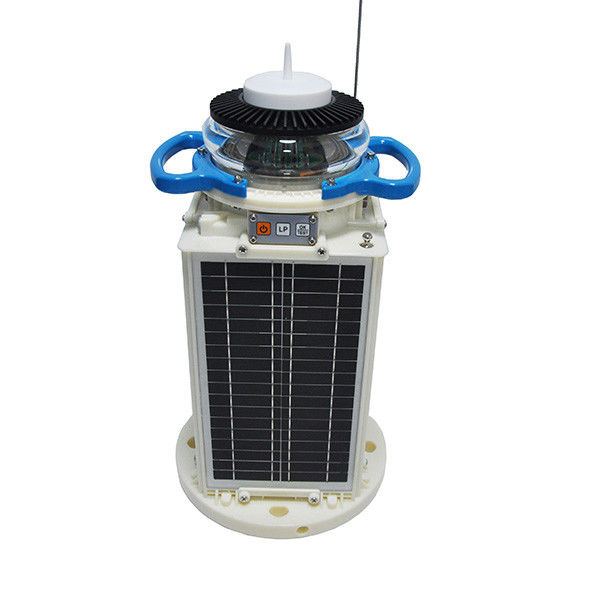

AIS LED Marine Lantern Self Contained Solar Powered With Red Green Yellow Blue White
Product Overviews:
The Fixed Self-Contained Solar Marine Lantern with AIS Transponder is a
state-of-the-art solution designed for fixed marine structures such as buoys, lighthouses, and offshore platforms.
With a visibility range of up to 7 NM, this lantern ensures safe navigation in even the most challenging conditions.
Its self-contained design integrates an LED light source, AIS transponder, GPS module, and four high-efficiency solar panels,
all housed in a weather-protected casing.
The large battery capacity allows for continuous operation, providing reliable and maintenance-free service for extended periods.
This advanced system is engineered to reduce operational costs while enhancing maritime safety
Features and benefits:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature range | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X455mm | |
| Life time | 10 years(excluding battery) | |
| Weight | ≤11KGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-7NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥2.5° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H | |
| AIS Spec | Operation frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK | |
| Frequency error | ±0.5kHz | |
| Transmission power | ≤12.5W | |
| Average power consumption | ≤0.05W | |
| Message format | No. 21 and NO.6,message periods are adjustable | |
| Operating type | Type three (SOTDMA, autonomous working mode) | |
| AIS antenna | Included, high gain omnidirectional antenna |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
