Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-LED-02
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Buoy Solar Powered Marine Lantern |
Flash Syncronization: |
GPS Synchronized |
Solar Output: |
4X7W |
Visible Range: |
3- 5NM |
Body Material: |
Fiberglass |
Size (mm ): |
240X240X489mm |
Product Name: |
Buoy Solar Powered Marine Lantern |
Flash Syncronization: |
GPS Synchronized |
Solar Output: |
4X7W |
Visible Range: |
3- 5NM |
Body Material: |
Fiberglass |
Size (mm ): |
240X240X489mm |

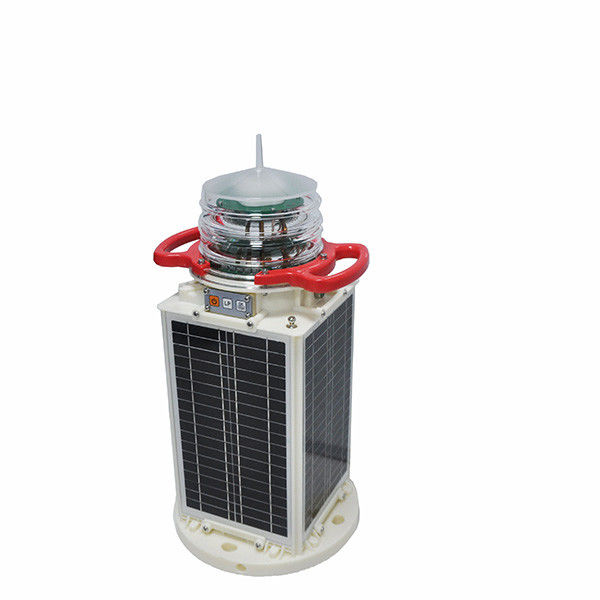

IALA AtoN LED Light 3-5NM Solar Powered GPS Synchronized Marine Lantern
Product Overviews:
Elevate your marine navigation with this advanced floating solar lantern,
designed to provide up to 5 nautical miles of visibility.
Its self-contained LED light is coupled with a GPS module for accurate positioning.
Four solar panels and a large battery offer superior energy efficiency,
while the weather-resistant casing ensures long-lasting performance.
Accurate location tracking and extended operational life, even in extreme weather.
Features:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature range | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X489mm | |
| Life time | 10 years(excluding battery) | |
| Weight | 7.5-9.5KgKGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-5NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥8° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
