Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-GPRSN01
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Stand Alone GPRS Marine Lantern |
Comunication Module: |
GPRS |
IP Rating: |
IP67 |
Body Material: |
Fiberglass |
GPRS Network: |
4G/5G |
Warranty: |
3 Years |
Product Name: |
Stand Alone GPRS Marine Lantern |
Comunication Module: |
GPRS |
IP Rating: |
IP67 |
Body Material: |
Fiberglass |
GPRS Network: |
4G/5G |
Warranty: |
3 Years |

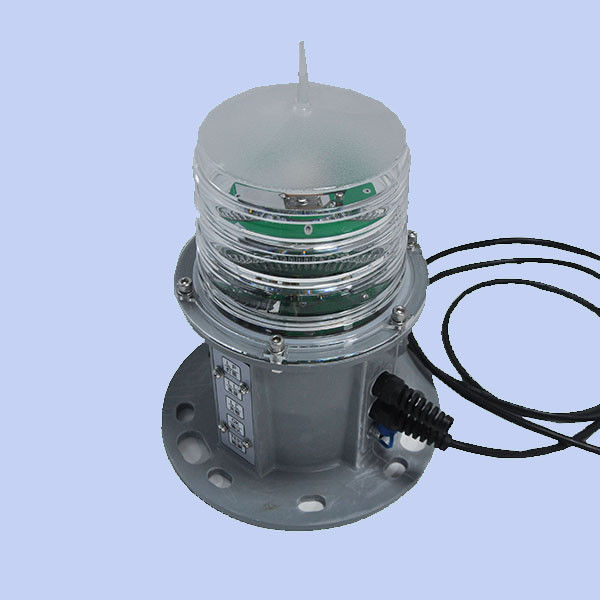

Stand Alone IP67 Fiberglass LED Marine Lantern For Buoy With GPRS Communicated
Product Overviews:
Designed for deployment on buoys,
the Floating Stand Alone Marine Lantern with GPRS offers an impressive range of up to 7 nautical miles.
It features an integrated 4G/5G GPRS module for seamless data transmission, ensuring constant communication.
The lantern is housed in durable fiberglass, which is resistant to UV rays, impacts, and corrosion,
making it weatherproof and long-lasting. Its high-intensity LED array operates with remarkable energy efficiency,
providing illumination in five IALA-standard colors: white, yellow, red, blue, and green, for effective marine signaling.
Key Features:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP67 | |
| Operating Voltage | 8-32V | |
| Size (mm ) | 240*185*341mm | |
| Life time | 10 years(excluding battery) | |
| Weight | ≤2.6KGS | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Flash syncronization | GPS synchronized flash | |
| Visible Range | up to 7NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥8° | |
| Light value | 256 adjustable | |
| Brightness | Adjustable | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H | |
| GPRS Spec: | Communication Module | Networks 4G or 5G |
| Transmition Consumption | ≤2W |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
