Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-LED-02
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Buoy Solar Powered Marine Lantern |
Battery Type: |
Lithium Iron Phosphate |
Battery Autonomy: |
25 Days |
Battery Capacity: |
384Wh/512Wh/665Wh |
Recharging Power: |
Typical 400 MA |
Battery Life: |
5 Years |
Product Name: |
Buoy Solar Powered Marine Lantern |
Battery Type: |
Lithium Iron Phosphate |
Battery Autonomy: |
25 Days |
Battery Capacity: |
384Wh/512Wh/665Wh |
Recharging Power: |
Typical 400 MA |
Battery Life: |
5 Years |

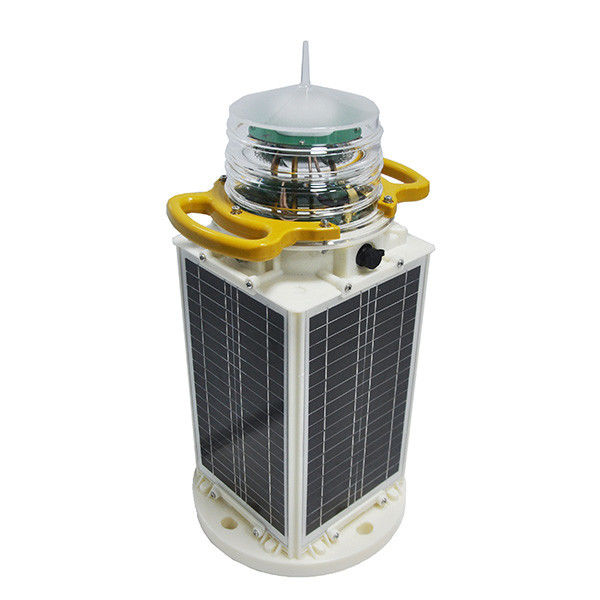

25 Days Autonomy Buoy Marine Lantern Self Contained With Solar Powered And GPS
Product Overviews:
This durable floating solar marine lantern is designed for buoy use,
delivering visibility up to 5 nautical miles.
It features a self-contained LED light and a GPS module for precise location tracking.
With its four solar panels and large battery, the lantern offers outstanding energy efficiency and longevity.
Its weather-protected design ensures reliable performance and minimal maintenance,
making it a robust choice for marine navigation.
Long-lasting illumination and accuracy with low upkeep requirements.
Features:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature range | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X489mm | |
| Life time | 10 years(excluding battery) | |
| Weight | 7.5-9.5KgKGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-5NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥8° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
