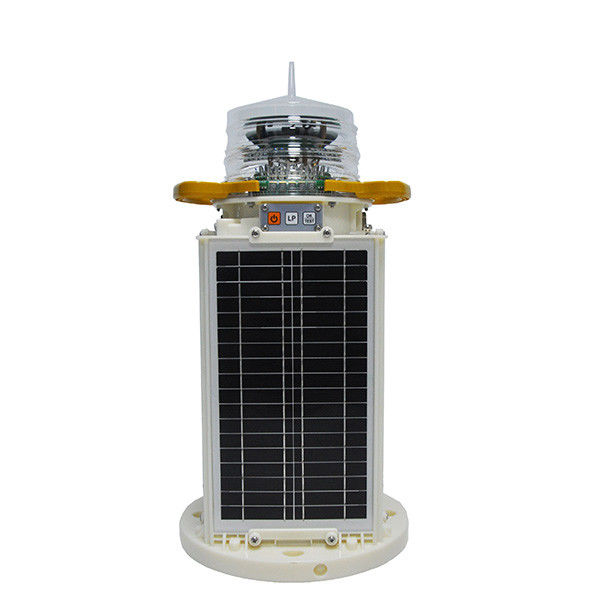

IALA Aids To Navigation Solar Powered Buoy Lights Marine Use With GPRS Module

Product Details

Place of Origin: China Chengdu

Brand Name: DIXIN

Certification: ROHS,CE

Model Number: DX-GRPSNL-02

Payment & Shipping Terms

Minimum Order Quantity: 1 PC

Price: Contact Us

Packaging Details: Carton

Delivery Time: Contact Us

Payment Terms: T/T

Supply Ability: 5000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

IALA Solar Powered Buoy Lights

,

GPRS Module Solar Powered Buoy Lights

,

Aids To Navigation Solar Buoy Light

Product Name:
GPRS Buoy Marine LED Lantern
Solar Output:
4X7W
Battery Type:
Lithium Iron Phosphate
Communication Networks:
GPRS 4G Or 5G
GPS Synchronization:
Yes
Life Time:
10 Years
Product Name:
GPRS Buoy Marine LED Lantern
Solar Output:
4X7W
Battery Type:
Lithium Iron Phosphate
Communication Networks:
GPRS 4G Or 5G
GPS Synchronization:
Yes
Life Time:
10 Years
Description
IALA Aids To Navigation Solar Powered Buoy Lights Marine Use With GPRS Module

IALA Marine Aids To Navigation Buoy Lantern Solar Powered With GPRS And GPS Module

Product Overviews:


Ideal for use on buoys, the Floating Self-Contained GPRS Lantern delivers a robust range of up to 5 nautical miles.
The lantern is equipped with a built-in GPRS communication module for seamless data connectivity.

Its weather-protected, self-contained design integrates an LED light source, four solar panels, and both GPRS and GPS modules.
With a high-capacity battery, it ensures top-tier energy efficiency and long-term reliability,
making it suitable for demanding marine environments.

Features and benefits:


  • Marine-Grade Durability: Constructed with fiberglass housing that is UV resistant, shockproof, and corrosion-proof, and is IP68 rated for reliable performance in harsh conditions.
  • Advanced Lighting and Communication: Offers an optical range of up to 5 nautical miles with a high-intensity, energy-efficient LED array. Includes an integrated system with a 4G/5G GPRS module, LED light, battery, and solar power supply for seamless data communication.
  • Optimized Power Management: Features four powerful 4X7W solar panels and a large battery capacity with various pack options, providing up to 25 days of operation without solar input.
  • Innovative Control and Customization: Equipped with a digital sensor for automatic light activation, supports six colors compliant with IALA standards, and offers over 256 customizable flash patterns. GPS synchronization, PC or remote configuration, and adjustable intensity and range are standard.
  • Long-Term Performance: Adheres to IALA recommendations, includes an integrated bird deterrent, and has an estimated average service life of 10 years, along with a high-gain omnidirectional antenna for enhanced performance.



Specifications:



Phisical SpecLens materialAcrylic
Body materialFiberglass
Operating temperature-35°C to +°65C
Humidity0~100%
IP RatingIP68
Size (mm )240X240X489mm
Life time10 years(excluding battery)
Weight7.5-9.5KgKGS
Battery SpecBattery typeLithium iron phosphate
Battery nominal voltage12.8V
Battery autonomy25 days
Battery capacity384Wh/512Wh/665Wh
Recharging powerTypical 400 mA
Standby power3mA current
Operating VoltageDC 10V—14.6V
Battery life5 years
Solar SpecSolar module typeMono crystalline Silicon
Solar output4X7W
Optical SpecLight SourceLEDs
Light colorRed/Green/Yellow/Blue/White/Yellow and blue
Visible Range3-5NM available
Horizontal Output(degrees)360°
Vertical Divergence(degrees)≥8°
Light value256 adjustable
Brightnessadjustable in units of 1%
Operation ModeBuilt-in sensor, dark and day adjust automatically
LED Life Experience(hours)>100,000H
GPRS SpecCommunication ModuleNetworks 4G or 5G
Transmition Consumption≤2W



Dimension Drawing:


IALA Aids To Navigation Solar Powered Buoy Lights Marine Use With GPRS Module 0

Applications:


IALA Aids To Navigation Solar Powered Buoy Lights Marine Use With GPRS Module 1

Quality Control:

ISO9001, 14001, 45001

IALA Aids To Navigation Solar Powered Buoy Lights Marine Use With GPRS Module 2

About Us:

Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.

We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.

Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.


IALA Aids To Navigation Solar Powered Buoy Lights Marine Use With GPRS Module 3
