Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-LED-01
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Stand Alone Marine Lantern |
IP Rating: |
IP67 |
Body Material: |
Fiberglass |
Light Source: |
LED |
GPS Synchronization: |
Yes |
Warranty: |
3 Years |
Product Name: |
Stand Alone Marine Lantern |
IP Rating: |
IP67 |
Body Material: |
Fiberglass |
Light Source: |
LED |
GPS Synchronization: |
Yes |
Warranty: |
3 Years |

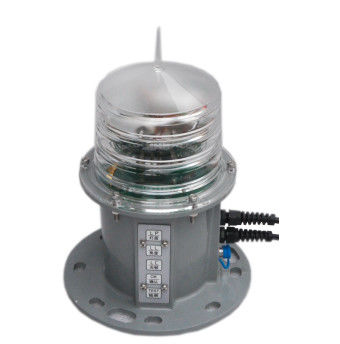

IP67 Fiberglass Stand Alone LED navaigation light for buoy marker GPS synchronized
Product Overviews:
The Floating Stand Alone Marine LED Lantern offers a powerful lighting solution for buoys,
achieving a range of up to 7 nautical miles.
It is built with a fiberglass housing that is UV resistant, shockproof, and corrosion-proof,
ensuring it withstands severe weather conditions.
The lantern uses a high-intensity, energy-efficient LED array and supports five IALA-compliant colors:
white, yellow, red, blue, and green.
Its weather-protected design enhances its durability and performance,
making it an ideal choice for consistent maritime signaling with reduced upkeep.
Key Features:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP67 | |
| Operating Voltage | 8-32V | |
| Size (mm ) | 240*185*341mm | |
| Life time | 10 years(excluding battery) | |
| Weight | ≤2.6KGS | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Flash syncronization | GPS synchronized flash | |
| Visible Range | up to 7NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥8° | |
| Light value | 256 adjustable | |
| Brightness | Adjustable | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
