Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-LED-02-G
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Solar Powered LED Marine Lantern |
Battery Autonomy: |
25 Days |
Battery Capacity: |
384Wh/512Wh/665Wh |
Operating Voltage: |
DC 10V—14.6V |
Battery Life: |
5 Years |
Warranty: |
3 Years |
Product Name: |
Solar Powered LED Marine Lantern |
Battery Autonomy: |
25 Days |
Battery Capacity: |
384Wh/512Wh/665Wh |
Operating Voltage: |
DC 10V—14.6V |
Battery Life: |
5 Years |
Warranty: |
3 Years |

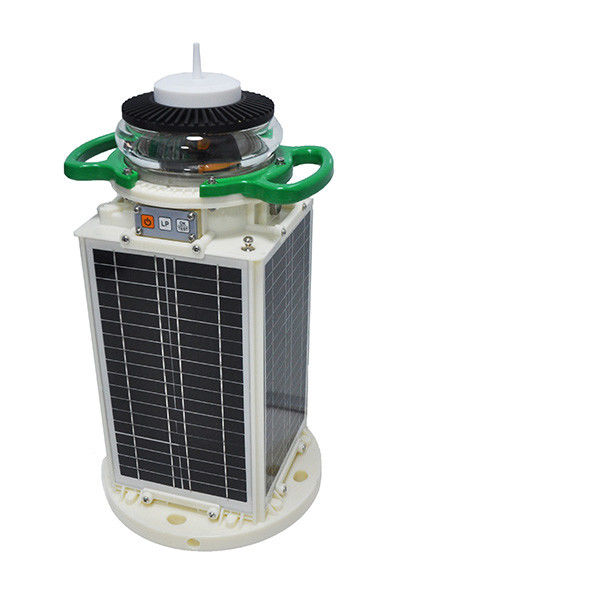

25 Days Autonomy Navigation LED Light With Solar Powered And GPS Module
Product Overviews:
Ideal for marine applications, the Fixed Self-Contained Solar Marine Lantern is designed to provide reliable illumination
for fixed structures such as lighthouses and navigation buoys. With a visibility range extending up to 7 nautical miles,
this lantern is engineered to withstand severe weather conditions thanks to its weather-protected, rugged construction.
It features a self-contained system that integrates an energy-efficient LED light source,
GPS module, and a robust solar power setup with four solar panels and a high-capacity battery.
This combination ensures maximum energy efficiency and minimal maintenance,
making it a dependable choice for enhancing maritime safety and navigation in both coastal and remote locations.
Features and benefits:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature range | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X455mm | |
| Life time | 10 years(excluding battery) | |
| Weight | ≤11KGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-7NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥2.5° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
