Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-LED-02
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Buoy Solar Powered Marine Lantern |
Body Material: |
Fiberglass |
Lens Material: |
Acrylic |
Operating Temperature: |
-35°C To +°65C |
Size (mm ): |
240X240X489mm |
Weight: |
7.5-9.5Kg |
Product Name: |
Buoy Solar Powered Marine Lantern |
Body Material: |
Fiberglass |
Lens Material: |
Acrylic |
Operating Temperature: |
-35°C To +°65C |
Size (mm ): |
240X240X489mm |
Weight: |
7.5-9.5Kg |

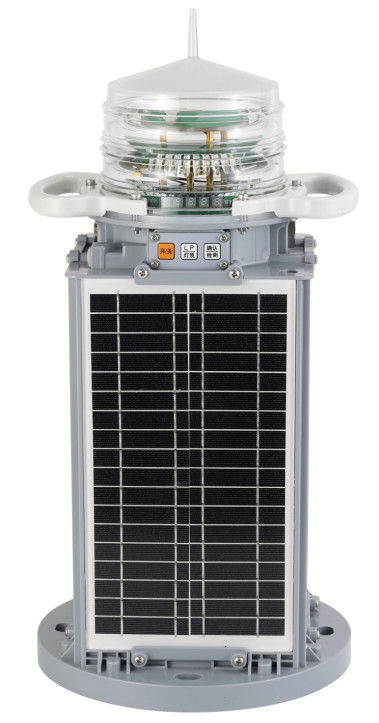

Fiberglass -35°C To °65C Self Contained Buoy Marine Lantern Solar Powered
Product Overviews:
Optimize your marine navigation with this reliable floating solar beacon,
offering up to 5 nautical miles of illumination.
Equipped with a self-contained LED light source and an integrated GPS module,
it ensures accurate positioning and visibility.
The lantern’s four solar panels and substantial battery provide superior energy efficiency,
while the weather-protected design guarantees durability in any marine environment.
Reliable performance with minimal maintenance, even in adverse weather.
Features and benefits:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature range | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X489mm | |
| Life time | 10 years(excluding battery) | |
| Weight | 7.5-9.5KgKGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-5NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥8° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
