Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-AISNL-02
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Buoy AIS Marine Lantern |
AIS Message Format: |
No. 21 And 6 |
Light Color: |
Red/Green/Yellow/Blue/White/Yellow And Blue |
Battery Type: |
Lithium Iron Phosphate |
Solar Module Type: |
Mono Crystalline Silicon |
Solar Output: |
4X7W |
Product Name: |
Buoy AIS Marine Lantern |
AIS Message Format: |
No. 21 And 6 |
Light Color: |
Red/Green/Yellow/Blue/White/Yellow And Blue |
Battery Type: |
Lithium Iron Phosphate |
Solar Module Type: |
Mono Crystalline Silicon |
Solar Output: |
4X7W |

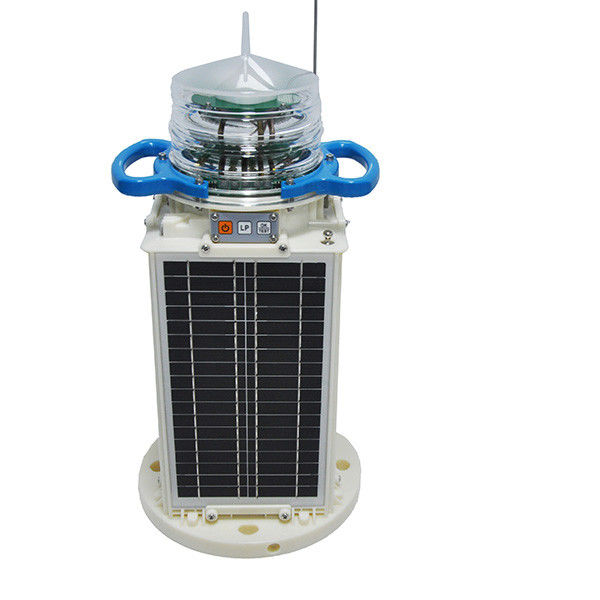

IALA AtoN Marine Lantern Solar Powered AIS Integrated GPS Synchronized
Product Overviews:
The Floating Self-Contained Solar Marine Lantern with AIS offers a reliable navigation solution for buoys,
with a range extending up to 5 nautical miles.
It comes equipped with a Type 3 AIS transponder for effective communication and navigation.
This lantern is weather-protected and features a self-contained system with an LED light source, AIS and GPS modules.
Four solar panels and a large battery capacity ensure the highest energy efficiency,
providing dependable performance in all marine conditions.
Features and benefits:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature range | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X489mm | |
| Life time | 10 years(excluding battery) | |
| Weight | 7.5-9.5KgKGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-5NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥8° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H | |
| AIS Spec | Operation frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK | |
| Frequency error | ±0.5kHz | |
| Transmission power | ≤12.5W | |
| Average power consumption | ≤0.05W | |
| Message format Messages | No. 21 and NO.6,message periods are adjustable | |
| Operating type | Type three (SOTDMA, autonomous working mode) | |
| AIS antenna | Included, high gain omnidirectional antenna |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
