Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-GRPSNL-02
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
GPRS Buoy Marine Lantern |
Light Color: |
Red/Green/Yellow/Blue/White/Yellow And Blue |
Horizontal Output: |
360° |
Vertical Divergence: |
≥8° |
Light Value: |
256 Adjustable |
Brightness: |
Adjustable In Units Of 1% |
Product Name: |
GPRS Buoy Marine Lantern |
Light Color: |
Red/Green/Yellow/Blue/White/Yellow And Blue |
Horizontal Output: |
360° |
Vertical Divergence: |
≥8° |
Light Value: |
256 Adjustable |
Brightness: |
Adjustable In Units Of 1% |

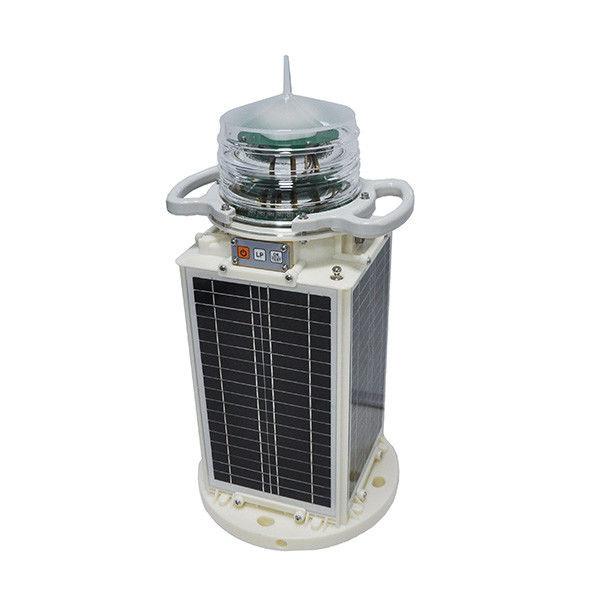

Self Contained Red Green Yellow Blue White Solar Buoy Marine Lantern With GPRS
Product Overviews:
The Floating Self-Contained GPRS Lantern is perfect for buoy applications,
providing effective illumination and communication up to 5 nautical miles.
It features a built-in GPRS module for reliable data communication and is weather-protected to withstand harsh marine conditions.
The self-contained unit includes a powerful LED light source, four efficient solar panels, and both GPRS and GPS modules.
Coupled with a large battery capacity, this lantern offers exceptional energy efficiency and consistent performance.
Features and benefits:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP68 | |
| Size (mm ) | 240X240X489mm | |
| Life time | 10 years(excluding battery) | |
| Weight | 7.5-9.5KgKGS | |
| Battery Spec | Battery type | Lithium iron phosphate |
| Battery nominal voltage | 12.8V | |
| Battery autonomy | 25 days | |
| Battery capacity | 384Wh/512Wh/665Wh | |
| Recharging power | Typical 400 mA | |
| Standby power | 3mA current | |
| Operating Voltage | DC 10V—14.6V | |
| Battery life | 5 years | |
| Solar Spec | Solar module type | Mono crystalline Silicon |
| Solar output | 4X7W | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Visible Range | 3-5NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥8° | |
| Light value | 256 adjustable | |
| Brightness | adjustable in units of 1% | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H | |
| GPRS Spec | Communication Module | Networks 4G or 5G |
| Transmition Consumption | ≤2W |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
