Product Details
Place of Origin: China Chengdu
Brand Name: DIXIN
Certification: ROHS,CE
Model Number: DX-AIS01
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: Contact Us
Packaging Details: Carton
Delivery Time: Contact Us
Payment Terms: T/T
Supply Ability: 5000pcs/Month
Product Name: |
Stand Alone AIS Marine Lantern |
AIS Message Format: |
No. 21 And NO.6 |
Operating Type: |
AIS Type 3 |
AIS Antenna: |
Included, High Gain Omnidirectional Antenna |
GPS Synchromization: |
Yes |
Life Time: |
10 Years |
Product Name: |
Stand Alone AIS Marine Lantern |
AIS Message Format: |
No. 21 And NO.6 |
Operating Type: |
AIS Type 3 |
AIS Antenna: |
Included, High Gain Omnidirectional Antenna |
GPS Synchromization: |
Yes |
Life Time: |
10 Years |

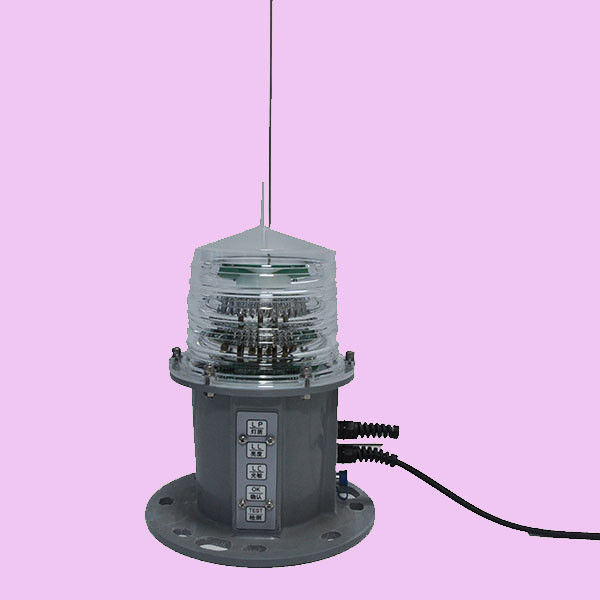

Remote Monitoring Buoy Marine LED Lantern Stand Alone With AIS Transponder GPS
Product Overviews:
The Floating Stand Alone Marine Lantern with AIS is designed for buoy applications,
providing exceptional visibility with a range of up to 7 nautical miles.
This lantern features a built-in AIS transponder Type 3, which ensures reliable message transmission and reception.
Constructed with a durable fiberglass housing, it offers UV resistance, shockproof properties, and corrosion-proof performance.
The high-intensity, energy-efficient LED array supports five IALA-compliant colors—white, yellow, red, blue, and green,
making it ideal for various marine signaling needs.
Its weather-protected design guarantees long-lasting operation in harsh conditions.
Key Features:
Specifications:
| Phisical Spec | Lens material | Acrylic |
| Body material | Fiberglass | |
| Operating temperature | -35°C to +°65C | |
| Humidity | 0~100% | |
| IP Rating | IP67 | |
| Operating Voltage | 8-32V | |
| Size (mm ) | 240*185*341mm | |
| Life time | 10 years(excluding battery) | |
| Weight | ≤2.6KGS | |
| Optical Spec | Light Source | LEDs |
| Light color | Red/Green/Yellow/Blue/White/Yellow and blue | |
| Flash syncronization | GPS synchronized flash | |
| Visible Range | up to 7NM available | |
| Horizontal Output(degrees) | 360° | |
| Vertical Divergence(degrees) | ≥8° | |
| Light value | 256 adjustable | |
| Brightness | Adjustable | |
| Operation Mode | Built-in sensor, dark and day adjust automatically | |
| LED Life Experience(hours) | >100,000H | |
| AIS Spec | Operation frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK | |
| Frequency error | ±0.5kHz | |
| Transmission power | ≤12.5W | |
| Average power consumption | ≤0.05W | |
| Message format Messages | No. 21 and NO.6,message periods are adjustable | |
| Operating type | Type three (SOTDMA, autonomous working mode) | |
| AIS antenna | Included, high gain omnidirectional antenna |
Dimension Drawing:
Applications:
Quality Control:
ISO9001, 14001, 45001
About Us:
Established in 2003 and officially registered in 2018,
Chengdu Dixin Technology Co., Ltd. is located in Chengdu, Sichuan, China.
We specialize in the research and development, production, sales, technical support,
and system engineering construction of marine electronic products.
Our dedication to innovation is reflected in our portfolio of over 20 national patents,
including new utility patents, appearance patents, and software copyrights.
Our Products include AIS AtoN (Aids to Navigation), stand alone and self contained AIS marine lantern,
AIS base station, marine antenna, Ultrasonic Anemometer, intelligent energy management systems, etc.
